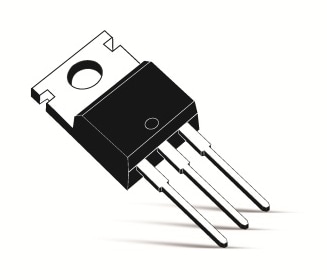

Produktinformationen "INTERNATIONAL RECTIFIER IGBT IRGB4064DPBF"
Uces 600 V, Ics25 20 A, Icpuls 40 A, Ptot 101 W, Ugeth 4 V, tdon 27 ns, tdoff 79 ns, TO-220.
Technische Daten:
- Typ: IGBT
- Bauform: TO-220AB
- max. Collector-Emitter Breakdown Voltage (Uces): 600 V
- max. Continuous Collector Current at 25°(Ic25): 20 A
- max. Pulsed Collector Current (Icpuls): 40 A
- Power Dissipation (Ptot): 101 W
- min. Gate Thereshold Voltage (Uge th): 4 V
- Turn On Delay Time (td on): 27 ns
- Turn Off Delay Time (td off): 79 ns
- Hersteller: INTERNATIONAL RECTIFIER
- Herstellerartikelnummer: IRGB4064DPBF
- Datenblatt: http://www.infineon.com/
